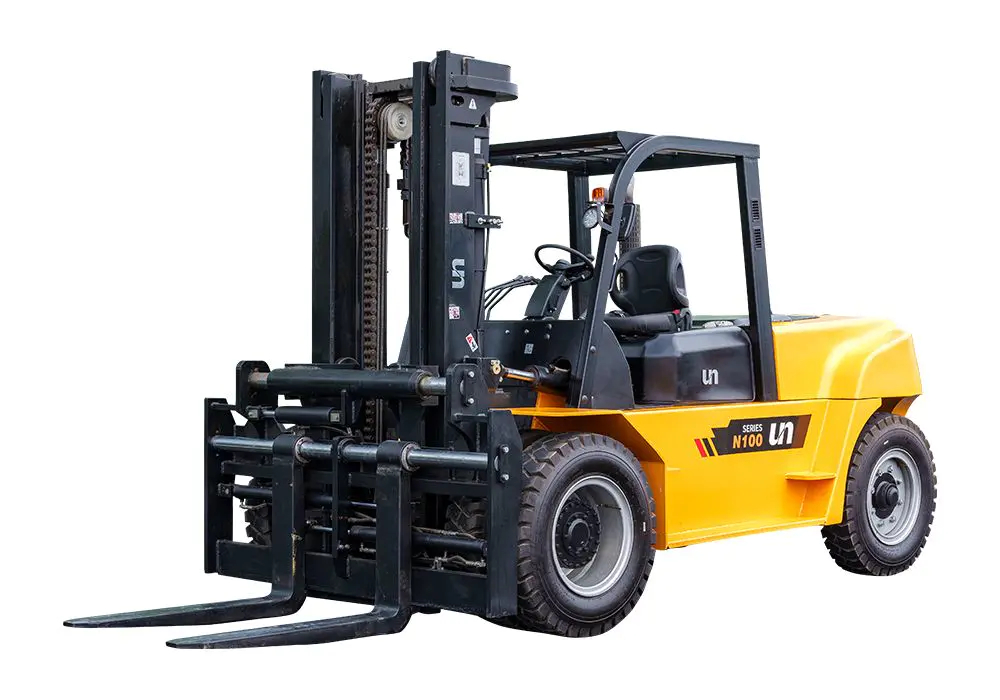

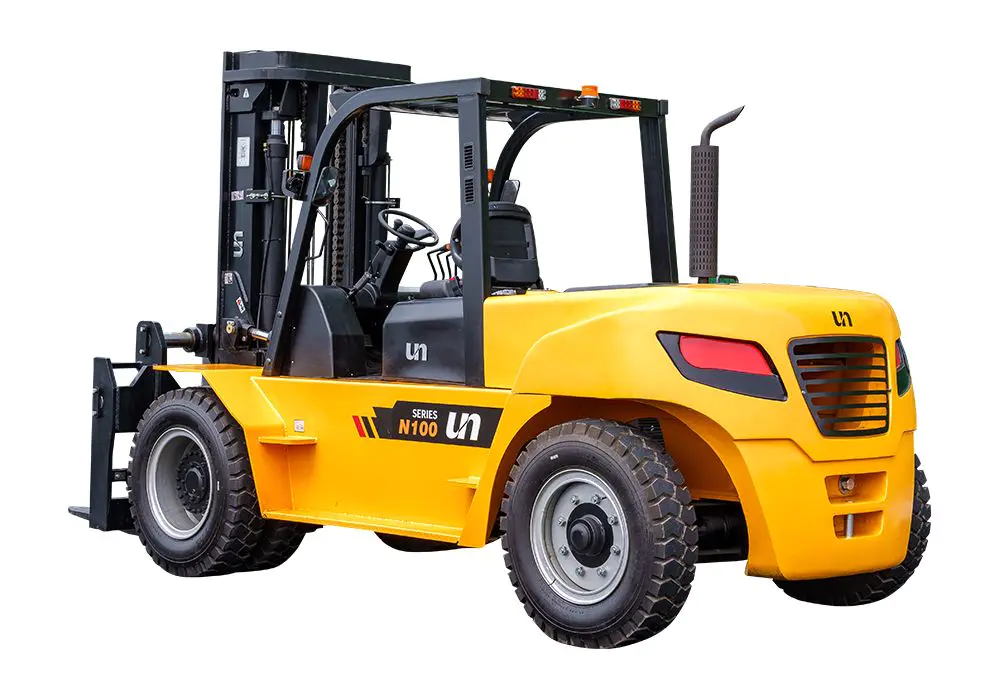

Description
| Reliability & Performance ● Scientific design and manufactured truck body combines superior suspension power train makes the forklift outstanding in performance and operation. The power train includes the well-known engines like Isuzu, Cummins, Xichai and Japanese level technology transmission. ● Reliable hydraulic system adopts Japanese Shimadzu valve and pump or other brands with similar quality level, it ensure the high lifting and steering speed. ● Advanced Cooling technology matching with large capacity radiator makes sure the forklift can work well even in hot area. ● The brake system with accumulator makes the braking fast respond and more smooth. |
Safety & Ergonomics
● OPS, Seat switch ensures a safe operation.
● Wide view mast can always give operator a good visibility.
● Strong OHG protects the operator from any falling objects.
● Ergonomics design with large foot space, head room, adjustable steering wheel and comfortable seat.
Easy Maintenance
● Nearly 90 degrees engine hood makes daily maintenance much easier, all part can be reached quickly.
● Convenient replace of transmission oil filter.
MAIN SPECIFICATIONS
General | 1 | Manufacturer |
| UN | ||||
2 | Model |
| FD50T | FD60T | FD70T | FD80T | FD100T | |
3 | Power Type |
| Diesel | |||||
4 | Rated load Capacity | Q(kg) | 5000 | 6000 | 7000 | 8000 | 10000 | |
5 | Load Centre | C(mm) | 600 | |||||
Characteristic & Dimension | 6 | Rated Lift Height | H3(mm) | 3000 | ||||
7 | Free Lift Height | H2(mm) | 152 | 152 | 152 | 120 | 120 | |
8 | Fork Size (L*W*T) | mm | 1220x150x60 | 1220x150x60 | 1220x150x65 | 1220x175x75 | 1220x175x80 | |
9 | Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | |||||
10 | Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 585 | 585 | 585 | 721 | 721 | |
11 | Rear Overhang | X2(mm) | 640 | 640 | 720 | 760 | 760 | |
12 | Ground Clearance (Bottom of Mast) | H7(mm) | 200 | 200 | 200 | 250 | 250 | |
13 | Length to Face of Fork (Without Fork) | L1(mm) | 3510 | 3510 | 3590 | 4040 | 4270 | |
14 | Overall Width | B1(mm) | 1996 | 1995 | 1996 | 2165 | 2166 | |
15 | Mast Lowered Height | H1(mm) | 2515 | 2515 | 2615 | 2695 | 2845 | |
16 | Mast Extended Height (With Backrest） | H4(mm) | 4437 | 4437 | 4437 | 4020 | 4260 | |
| Performance | 17 | Overhead Guard Height | H5(mm) | 2445 | 2445 | 2445 | 2520 | 2540 |
18 | Turning Radius （Outside） | Wa(mm) | 3260 | 3280 | 3340 | 3700 | 4100 | |
19 | Min.Aisle width for pallets | Asl(mm) | 5285 | 5285 | 5365 | 5645 | 6045 | |
20 | Travel Speed (No Load) | km/h | 23/21 | 23/21 | 23/21 | 21/18 | 19/16 | |
21 | Lifting Speed (No Load/Full Load) | mm/sec | 530/500 | 530/500 | 530/490 | 400/360 | 380/328 | |
22 | Lowering Speed (No Load/Full Load) | mm/sec | ≥300/≤600 | ≥300/≤600 | ≥300/≤600 | ≥300/≤600 | ≥300/≤600 | |
23 | Max.Drawbar Pull (Full Load) | KN | 53 | 53 | 52 | 58 | 57 | |
24 | Max.Gradeability(Full Load) | % | 32 | 27 | 24 | 20 | 20 | |
| Chassis | 25 | Tyre (Front x 4) | mm | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-20-14PR | 9.00-20-14PR |
26 | Tyre (Rear x 2) | mm | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-20-14PR | 9.00-20-14PR | |
27 | Front Tread | mm | 1470 | 1470 | 1470 | 1600 | 1600 | |
28 | Rear Tread | mm | 1700 | 1700 | 1700 | 1700 | 1700 | |
29 | Wheelbase | Y(mm) | 2250 | 2250 | 2250 | 2500 | 2800 | |
| Weight | 30 | Total Weight |
| 7980 | 8640 | 9350 | 11850 | 12900 |
31 | Front Axle Weight Distribution (Full Load) |
| 11660 | 13050 | 14570 | 17800 | 20610 | |
32 | Rear Axle Weight Distibution (Full Load) |
| 1320 | 1590 | 1780 | 2050 | 2290 | |
33 | Front Axle Distribution (No Load) | kg | 4010 | 3860 | 3860 | 4740 | 5660 | |
34 | Rear Axle Weight Distribution (No Load) |
| 3970 | 4760 | 5490 | 7110 | 8240 | |
| Power & Transmission | 35 | Battery | V/Ah | 24/90 | ||||
36 | Fuel Tank Capacity | L | 120 | |||||
37 | Transmission Type |
| Powershift | |||||
38 | Transmission Stage (FWD、RVS) |
| 2/2 | |||||
39 | Operating Pressure (For Attachments) | Mpa | 20 | |||||
Specifications and characteristics are subject to change without notice.
- MAIN SPECIFICATIONS
General
1
Manufacturer
UN
2
Model
FD50T
FD60T
FD70T
FD80T
FD100T
3
Power Type
Diesel
4
Rated load Capacity
Q(kg)
5000
6000
7000
8000
10000
5
Load Centre
C(mm)
600
Characteristic & Dimension
6
Rated Lift Height
H3(mm)
3000
7
Free Lift Height
H2(mm)
152
152
152
120
120
8
Fork Size (L*W*T)
mm
1220x150x60
1220x150x60
1220x150x65
1220x175x75
1220x175x80
9
Mast Tilt Angle (F/R, α°/β°)
deg
6°/12°
10
Fork Overhang (Wheel Center to Fork Face)
X1(mm)
585
585
585
721
721
11
Rear Overhang
X2(mm)
640
640
720
760
760
12
Ground Clearance (Bottom of Mast)
H7(mm)
200
200
200
250
250
13
Length to Face of Fork (Without Fork)
L1(mm)
3510
3510
3590
4040
4270
14
Overall Width
B1(mm)
1996
1995
1996
2165
2166
15
Mast Lowered Height
H1(mm)
2515
2515
2615
2695
2845
16
Mast Extended Height (With Backrest）
H4(mm)
4437
4437
4437
4020
4260
Performance 17
Overhead Guard Height
H5(mm)
2445
2445
2445
2520
2540
18
Turning Radius （Outside）
Wa(mm)
3260
3280
3340
3700
4100
19
Min.Aisle width for pallets
Asl(mm)
5285
5285
5365
5645
6045
20
Travel Speed (No Load)
km/h
23/21
23/21
23/21
21/18
19/16
21
Lifting Speed (No Load/Full Load)
mm/sec
530/500
530/500
530/490
400/360
380/328
22
Lowering Speed (No Load/Full Load)
mm/sec
≥300/≤600
≥300/≤600
≥300/≤600
≥300/≤600
≥300/≤600
23
Max.Drawbar Pull (Full Load)
KN
53
53
52
58
57
24
Max.Gradeability(Full Load)
%
32
27
24
20
20
Chassis 25
Tyre (Front x 4)
mm
8.25-15-14PR
8.25-15-14PR
8.25-15-14PR
8.25-20-14PR
9.00-20-14PR
26
Tyre (Rear x 2)
mm
8.25-15-14PR
8.25-15-14PR
8.25-15-14PR
8.25-20-14PR
9.00-20-14PR
27
Front Tread
mm
1470
1470
1470
1600
1600
28
Rear Tread
mm
1700
1700
1700
1700
1700
29
Wheelbase
Y(mm)
2250
2250
2250
2500
2800
Weight 30
Total Weight
7980
8640
9350
11850
12900
31
Front Axle Weight Distribution (Full Load)
11660
13050
14570
17800
20610
32
Rear Axle Weight Distibution (Full Load)
1320
1590
1780
2050
2290
33
Front Axle Distribution (No Load)
kg
4010
3860
3860
4740
5660
34
Rear Axle Weight Distribution (No Load)
3970
4760
5490
7110
8240
Power & Transmission 35
Battery
V/Ah
24/90
36
Fuel Tank Capacity
L
120
37
Transmission Type
Powershift
38
Transmission Stage (FWD、RVS)
2/2
39
Operating Pressure (For Attachments)
Mpa
20
Specifications and characteristics are subject to change without notice.
Please contact us for detailed information.
