Description
Appearance
● This series has smooth and streamlined body, giving a more powerful look. The sharp edges and contrast color design of the counterweight make it more attractive.
● The electrical system utilizes dynamic LED taillights, imparting a futuristic and highly technological appeal to the vehicle, creating a strong visual impact.
High Performance

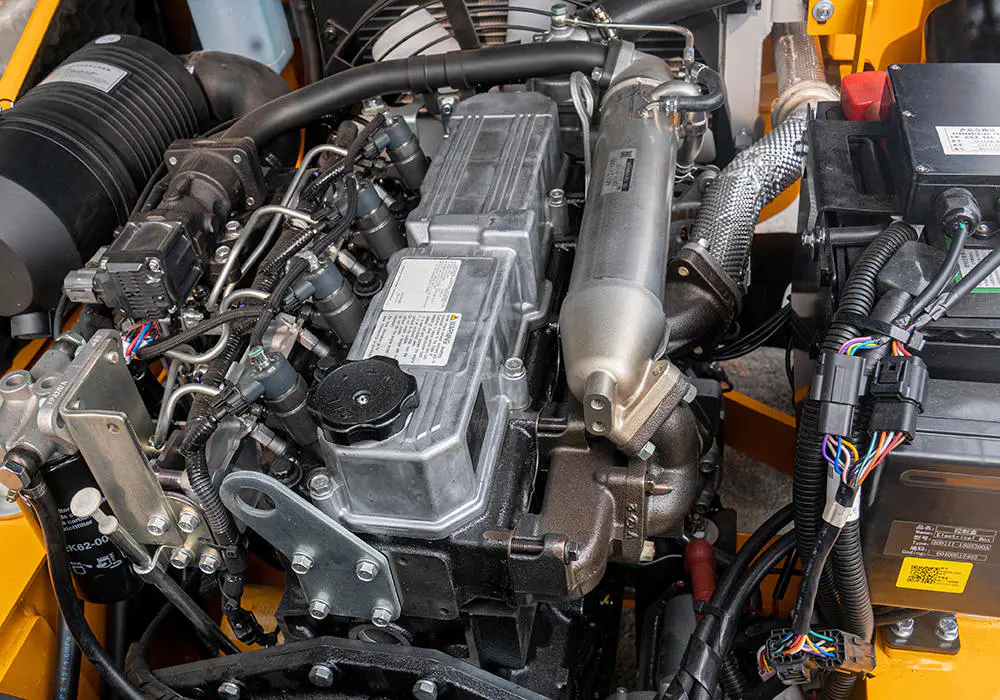

● Using internationally renowned Stage V/Tier4F, Mitsubishi 4EG, Kubota and GCT engines.
● Utilizing the new narrow-groove steel mast to reduce the overall vehicle weight & enhance visibility.

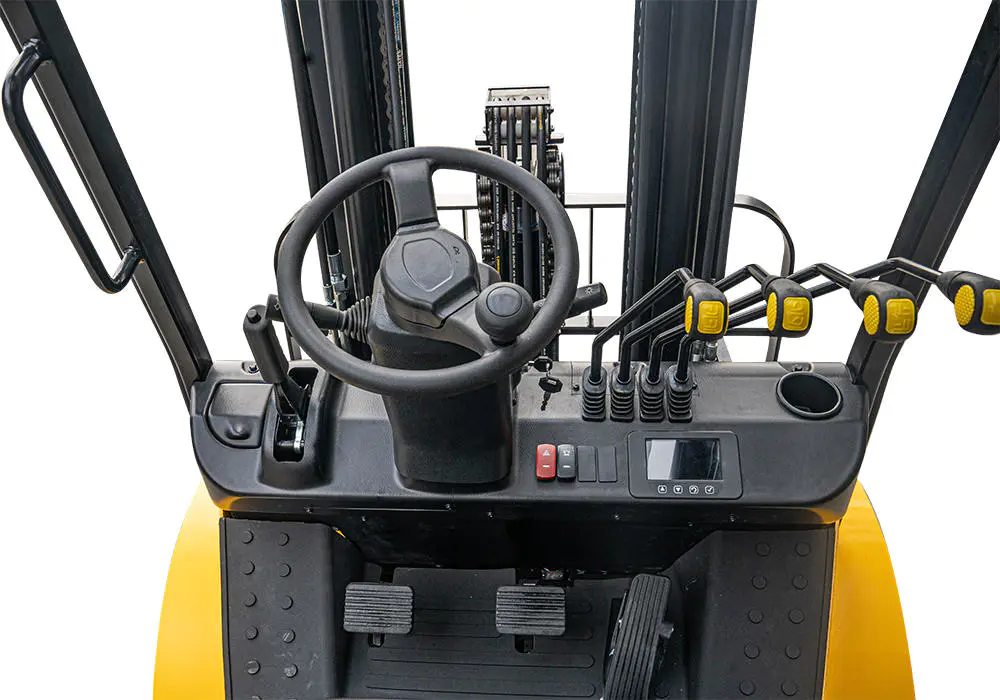

● Equipped with an interactive dashboard as standard for real-time monitoring.
● New generation LED lighting system.
● Load sensing steering system.
Safety & Reliability
● The stamped overhead guard offers increased durability and reliability.
● All key connectors and joints are waterproof.
● The OPS system effectively prevents unintended forklift startup.
Superior Ergonomics
● Wide-view mast provides a broader vision.
● Implementing a suspended seat has reduced vibrations.
● The spacious foot space provides easy access for getting on and off.
● The adjustable steering column equip with a small steering wheel for more effortless operation.
● Adopting a new type of ratchet handbrake, effectively reducing operating force.
Easy Maintenance
● The detachable side panels make maintenance and cleaning more convenient.

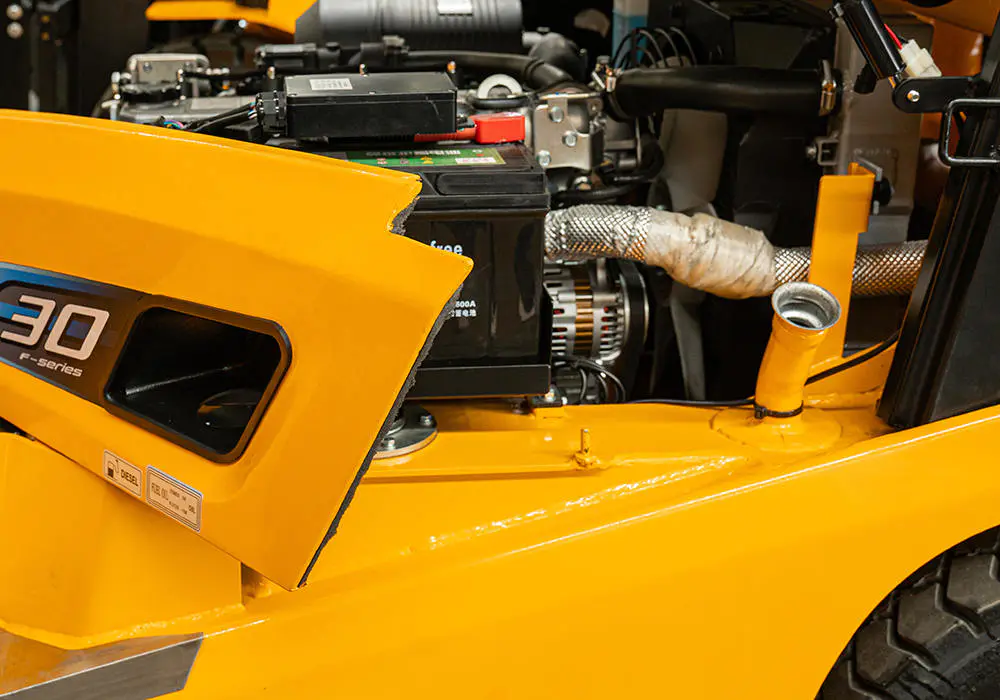

● The large opening angle of the engine hood makes maintenance easier.
| General | 1 | Manufacturer | UN | ||||||||
| 2 | Model | FD20T-XJM3 | FD20T-XJV2 | FD25T-XJM3 | FD25T-XJV2 | FD30T-XJM3 | FD30T-XJV2 | FD35T-XJM3 | FD35T-XJV2 | ||
| 3 | Power Type | Diesel | |||||||||
| 4 | Rated Load Capacity | Q(kg) | 2000 | 2500 | 3000 | 3500 | |||||
| 5 | Load Centre | C(mm) | 500 | 500 | 500 | 500 | |||||
| Characteristic & Dimension | 6 | Rated Lift Height | H3(mm) | 3000 | 3000 | 3000 | 3000 | ||||
| 7 | Free Lift Height | H2(mm) | 140 | 140 | 125 | 150 | |||||
| 8 | Fork Size (L×W×T) | mm | 1070×120×40 | 1070×125×45 | 1070×125×50 | ||||||
| 9 | Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | |
| 10 | Min. Mast Height | H1(mm) | 2050 | 2050 | 2055 | 2400 | |||||
| 11 | Overall Height – Fork Raised | H4(mm) | 4030 | 4030 | 4055 | 4075 | |||||
