Description
Appearance
● This series has smooth and streamlined body, giving a more powerful look. The sharp edges and contrast color design of the counterweight make it more attractive.
● The electrical system utilizes dynamic LED taillights, imparting a futuristic and highly technological appeal to the vehicle, creating a strong visual impact.
High Performance
● High ground clearance meets the demands of outdoor working conditions.
● Turning deceleration as standard(with rear wheel angle indication in display).
● IPX4 waterproof performance.

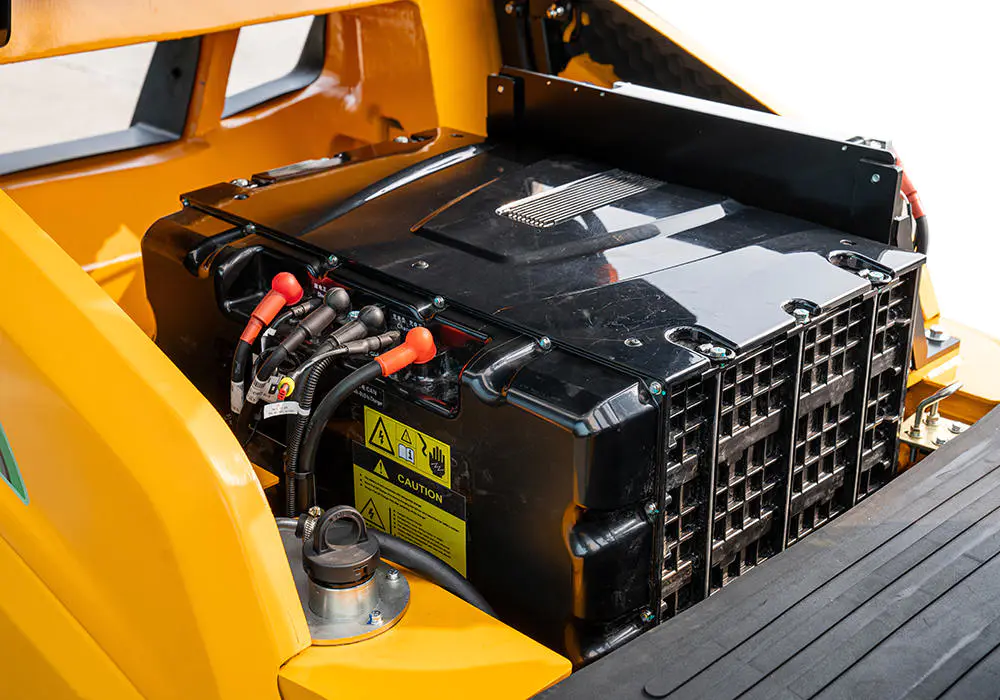

● Optional with a maximum 460Ah large-capacity lithium battery, equipped with a 200A high-speed charger.
● Optional low-temperature heating system(-20 ℃).
● Standard equipped with proportional lifting.
● Adopting a load sensing steering system .
Safety & Reliability
● The casting steering axle with tapered roller bearing, equipped with turning reduction for durability and safety.
● Standard-equipped with a bottom-buffering function.
● Anti-sloping function.
● Equipped with an anti-static strip as standard.
● The lithium battery meets the latest CE standards.
Superior Ergonomics
●The entire forklift adopts an ergonomic design, with larger operating space and more comfort.
● Utilizing an optimized stamped overhead guard, providing improved visibility.
● Multifunctional color display instrument.
● Adopting a new type of ratchet handbrake.

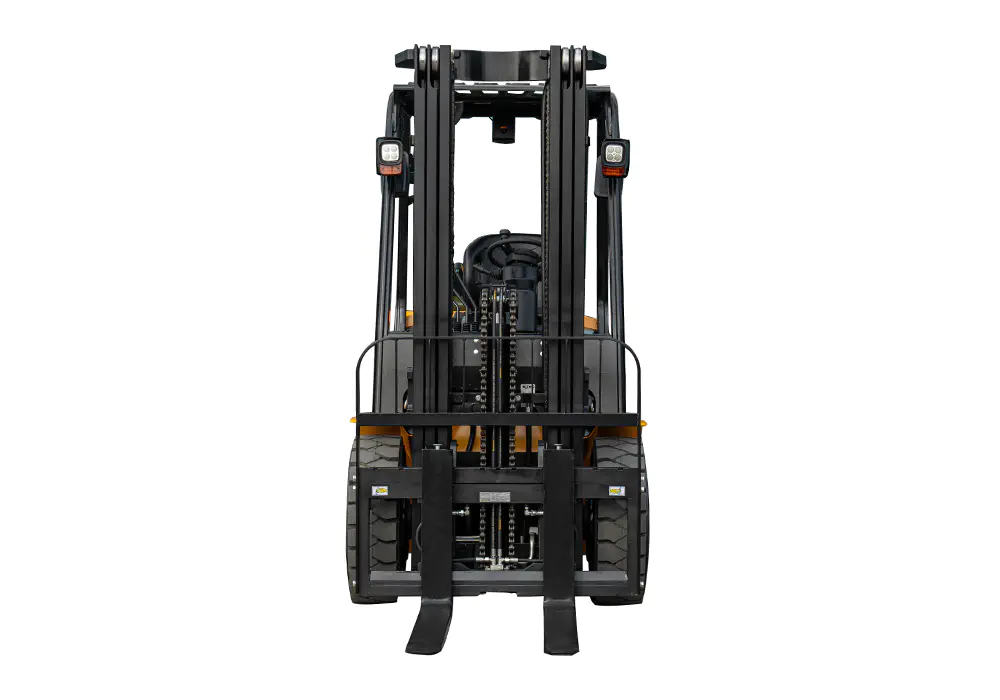

● The wide-view mast provides better vision.
● Standard-equipped with USB for mobile devices.
Easy Maintenance
● Increased hood opening angle provides a more spacious space for inspection and maintenance.
● The detachable side panels make maintenance and cleaning more convenient.
MAIN SPECIFICATIONS
| General | 1 | Manufacturer | UN | ||||
| 2 | Model | FB20 | FB25 | FB30 | FB35 | ||
| 3 | Power Type | Lithium Battery | |||||
| 4 | Rated Load Capacity | Q(kg) | 2000 | 2500 | 3000 | 3500 | |
| 5 | Load Centre | C(mm) | 500 | 500 | 500 | 500 | |
| Characteristic & Dimension | 6 | Rated Lift Height | H3(mm) | 3000 | 3000 | 3000 | 3000 |
| 7 | Free Lift Height | H2(mm) | 140 | 140 | 125 | 150 | |
| 8 | Fork Size (L×W×T) | mm | 1070×120×40 | 1070×120×40 | 1070×125×45 | 1070×125×50 | |
| 9 | Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | |
| 10 | Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 460 | 460 | 470 | 480 | |
| 11 | Rear Overhang | X2(mm) | 520 | 520 | 530 | 600 | |
| 12 | Ground Clearance (Bottom of Mast) | H7(mm) | 110 | 110 | 125 | 125 | |
| 13 | Length to Face of Fork (Without Fork) | L1(mm) | 2630 | 2630 | 2700 | 2780 | |
| 14 | Overall Width | B1(mm) | 1170 | 1170 | 1220 | 1225 | |
| 15 | Mast Lowered Height | H1(mm) | 2055 | 2055 | 2060 | 2070 | |
| 16 | Mast Extended Height (With Backrest) | H4(mm) | 4070 | 4070 | 4150 | 4070 | |
| 17 | Overhead Guard Height | H5(mm) | 2215 | 2215 | 2190 | 2235 | |
| 18 | Turning Radius (Outside) | Wa(mm) | 2365 | 2365 | 2450 | 2500 | |
| 19 | Min.Aisle width for pallets | Ast(mm) | 4120 | 4120 | 4120 | 4255 | |
| Performance | 20 | Travel Speed (No Load) | km/h | 19 | 19 | 11/12 | 19 |
| 21 | Lifting Speed (Full Load) | mm/sec | 510 | 510 | 250/360 | 400 | |
| 22 | Lowering Speed(Full Load/No Load) | mm/sec | No Load≥300 Full Load≤600 | ||||
| 23 | Max.Gradeability (Full Load) | % | 15 | ||||
| Chassis | 24 | Tyre (Front x 2) | mm | 7.00-12-12PR | 28×9-15-12PR | ||
| 25 | Tyre (Rear x 2) | mm | 6.00-9-10PR | 6.50-10-10PR | |||
| 26 | Front Tread | B2(mm) | 970 | 970 | 1000 | 1000 | |
| 27 | Rear Tread | B3(mm) | 980 | 980 | 980 | 980 | |
| 28 | Wheelbase | Y(mm) | 1650 | 1650 | 1700 | 1700 | |
| Weight | 29 | Total Weight | kg | 3620 | 3860 | 4200 | 4775 |
| 30 | Front Axle Weight Distribution (Full Load) | kg | 5058 | 5724 | 6390 | 6997 | |
| 31 | Rear Axle Weight Distribution (Full Load) | kg | 562 | 636 | 810 | 777 | |
| 32 | Front Axle Weight Distribution (No Load) | kg | 1450 | 1545 | 1670 | 1910 | |
| 33 | Rear Axle Weight Distribution (No Load) | kg | 2170 | 2315 | 2530 | 2865 | |
| Power & Transmission | 34 | Battery | V/Ah | 80V/205AH | |||
| 35 | Drive Motor | KW | 10 | ||||
| 36 | Lift Motor | KW | 12 | ||||
| 37 | Operating Pressure (For Attachments) | Mpa | 19.5 | ||||
Specifications and characteristics are subject to change without notice.
