Description
Reliability & Performance
● Zero-Emission, low-level vibration, low operation cost, high efficiency.
● The most advanced 3-phase full AC technology in UN’s electric range combining the Italian ZAPI electric controller, Top AC motors, and HAKWER battery(option), as well as the Japanese Shimadzu hydraulic system, Germany ZF transmission. These features guarantee your material handling the most cost-efficient.
● The energy regeneration function extends working hours.
● CANbus communication system provides a better understanding of the forklift.
● Compact design and 90 degrees turning angle make it good for narrow area working.
Safety & Ergonomics

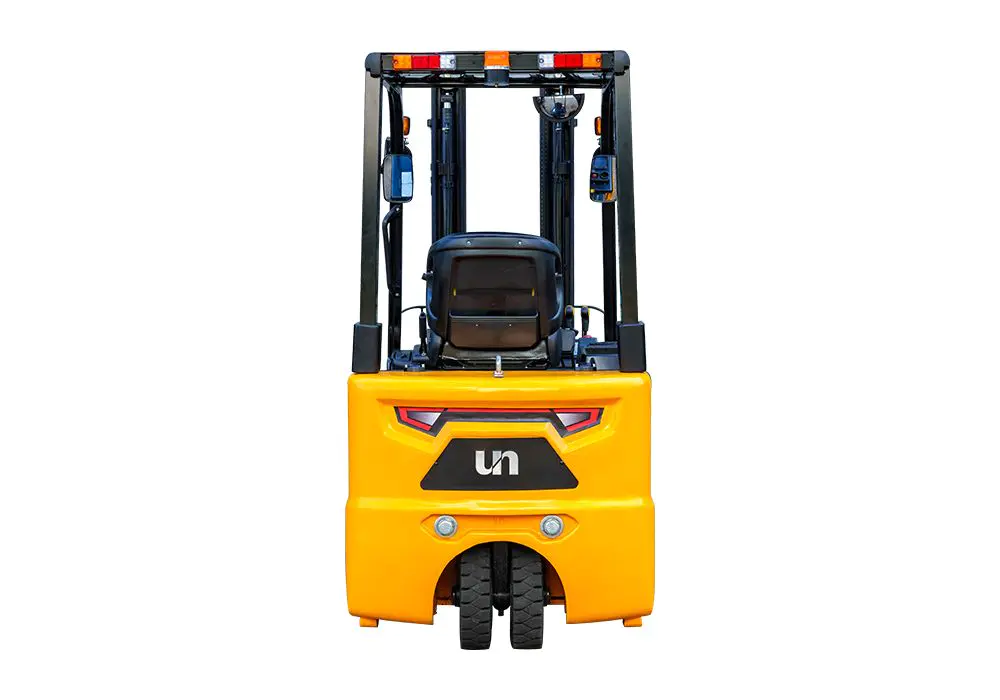

● Double rear tires achieve stability during traveling and turning. It can also control the turn speed automatically according to the turning angle.
● OPS, Seat switch ensures a safe operation.
● Strong OHG protects the operator from any falling objects.
● Wide view mast offers good visibility.

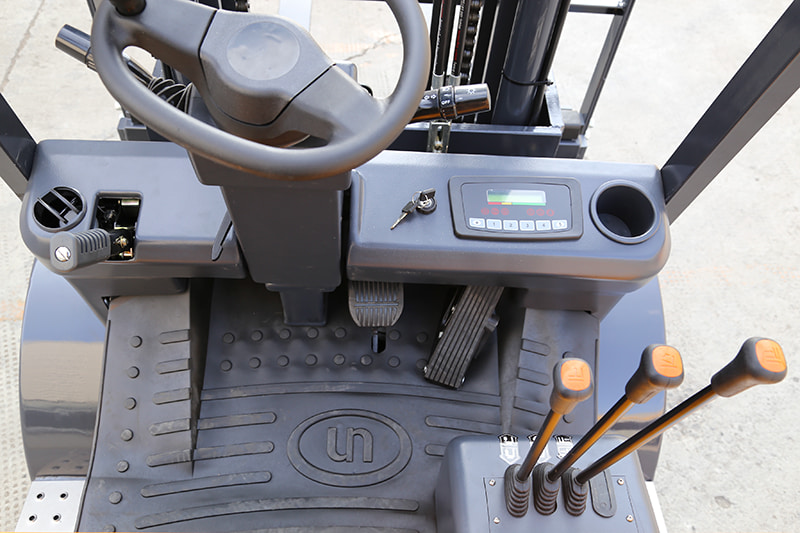

● Small steering wheel & wide foot space and optimized foot pedal position.
Easy Maintenance
● Maintenance free AC Motors make the forklift release less heat and ensure higher efficiency.
● Nearly 90 degrees battery hood makes your battery checking and changing easier.

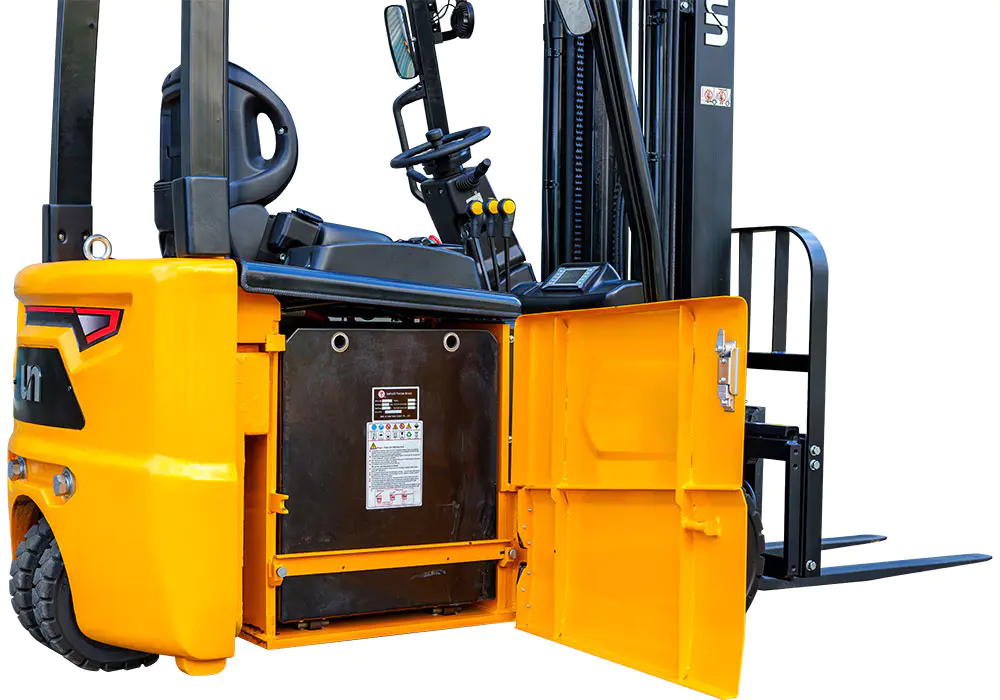

● Side battery extraction system,the battery comes with rollers, can be pulled out manually from the right side.
MAIN SPECIFICATIONS
| Specification | 1 | Manufacturer | UN | |||
| 2 | Model | FBT16 | FBT18 | FBT20 | ||
| 3 | Rated Load Capacity | Q(kg) | 1600 | 1800 | 2000 | |
| 4 | Load Centre | C(mm) | 500 | 500 | 500 | |
| 5 | Lift Height | H3(mm) | 3000 | 3000 | 3000 | |
| 6 | Free Lift | H2(mm) | 118 | 118 | 118 | |
| 7 | Fork Size(L/W/T) | (mm) | 920x100x35 | 920x100x35 | 1070x100x40 | |
| 8 | F/B(a°/B°) | Deg | 6°/6° | 6°/6° | 6°/6° | |
| Dimensions | 9 | Length(To Fork Face) | L1(mm) | 2036 | 2036 | 2136 |
| 10 | Width | B1(mm) | 1045 | 1045 | 1160 | |
| 11 | Mast Lowered Height | H1(mm) | 2085 | 2085 | 2085 | |
| 12 | Mast Extended Height(With Backrest) | H4(mm) | 4070 | 4070 | 4070 | |
| 13 | Overhead Guard Height | H5(mm) | 2085 | 2085 | 2085 | |
| 14 | Turning Radius | Wa(mm) | 1615 | 1615 | 1702 | |
| 15 | Fork Overhang(Wheel Center to Fork Face) | X(mm) | 408 | 408 | 415 | |
| 16 | Front Tread | B2(mm) | 977 | 977 | 960 | |
| 17 | Rear Tread | B3(mm) | 180 | 180 | 180 | |
| 18 | Ground Clearance | H6(mm) | 105 | 105 | 105 | |
| 19 | Wheelbase | Y(mm) | 1420 | 1420 | 1520 | |
| 20 | Fork Spread(Min/Max) | (mm) | 240/1030 | 240/1030 | 240/1030 | |
| 21 | Working Aisle Width With Pallet (1000×1200,1200 Lengthways) | Ast (mm) | 3290 | 3290 | 3325 | |
| 22 | Working Aisle Width With Pallet (800×1200,800 Lengthways) | Ast (mm) | 3410 | 3410 | 3525 | |
| Performance | 23 | Travel Speed (Full Load) | km/h | 13 | 13 | 13 |
| 24 | Travel Speed (No Load) | km/h | 14 | 14 | 14 | |
| 25 | Lifting Speed (Full Load) | mm/s | 290 | 290 | 290 | |
| 26 | Lifting Speed (No Load) | mm/s | 340 | 340 | 340 | |
| 27 | Max. Gradeability (Full Load) | % | 15 | 15 | 15 | |
| 28 | Total Weight (Contains the battery) | kg | 3345 | 3525 | 3675 | |
| 29 | Tyre (Front×2) | 18X7-8 | 18X7-8 | 200/50-10 | ||
| 30 | Tyre (Rear×2) | 15X4.5-8 | 15X4.5-8 | 15X4.5-8 | ||
| Drive | 31 | Driver Motor | kw | 4.8X2 | 4.8X2 | 4.8X2 |
| 32 | Pump Motor | kw | 10 | 10 | 10 | |
| 33 | Standard Lead Acid Battery | V/Ah | 48/460 | 48/460 | 48/540 | |
| Standard Lithium-ion Battery | V/Ah | 48/300 | 48/300 | 48/300 | ||
| 34 | Controller Type | AC | AC | AC | ||
| 35 | Controller Manufacturer | ZAPI | ZAPI | ZAPI | ||
| 36 | Operating Pressure | Mpa | 19.5 | 19.5 | 19.5 | |
Specifications and characteristics are subject to change without notice.
